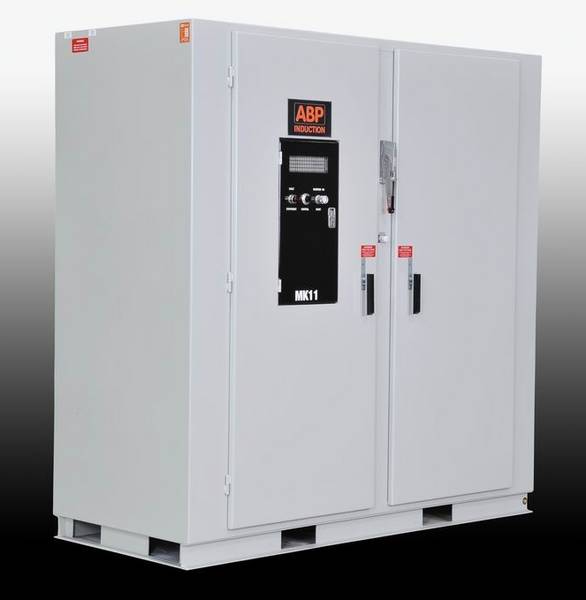

MK11 IGBT Converter
Available from Pillar Induction
The MK11 is an energy efficient, voltage source inverter with a parallel-tuned technology. This IGBT power supply offers a wide tuning range and is available in both local and remote heat station configurations which simplifies integration into new installations or retrofitting existing systems with energy-efficient.
Selectable output regulation modes are voltage, kW, or current, at any rated output.
Direct modern replacement for motor generator and SCR technology.
IGBT Insulated Gate Bipolar Transistor modules.
Parallel tuned output circuit.
Constant voltage control circuit transformer.
96.7% conversion efficiency.
Wide matching range capability.
Large, 4-line alphanumeric display.
Lockable line power disconnect switch with undervoltage trip.
Push to test tuning verification.
Insertable control board IC devices to expedite field servicing.
Single main control board within a separate lockable door for safe access.
NEC and NFPA79 Wiring codes.
Isolation output transformer.
Full height safety interlocked doors.
Single side access for servicing.
Heavy welded steel channel base with fork lift slots.
Precut access panels for power infeed and output.
