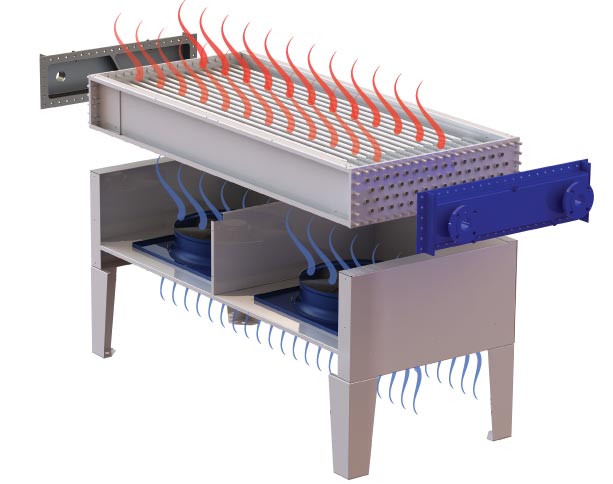

Designed specifically for quenching applications in the heat treating industry, Solanus Air Cooled Quench Oil Coolers incorporate quality engineered state-of-the-art features optimized by 3D solid modeling for the ultimate in reliability and maintainability.
Solanus quench coolers are a totally safe method of cooling quench oil baths compared to water-cooled systems. Using ambient air as the cooling medium, there is no chance of contaminating oil quench tanks with water, which can cause disastrous explosions and fires. Large diameter tubes (1.00 inch / 25.4 mm OD) with heavy wall thickness allow thermally efficient turbulent flow without the use of internal turbulators.
The scrubbing action of the quenchant effectively eliminates tube fouling and plugging of the heat exchanger tubes, even with dirty quench fluid. Removable coverplate headers and straight-through tube design provide easy access for mechanical tube cleaning if necessary.
A variety of pumps and temperature controls are optionally available to complete the system.
