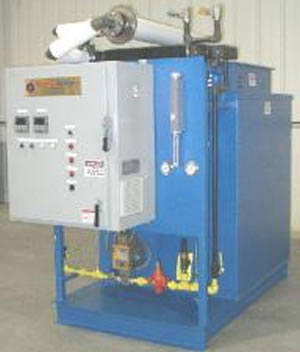

Thermo Transfer manufactures a complete line of dissociated ammonia generators. The size of the unit varies from 150 SCFH to 8,000 SCFH. The generator provides 75% Hydrogen and 25% Nitrogen by cracking anhydrous ammonia at high temperature in presence of catalyst. The reaction itself is endothermic as it requires an external heat to maintain the temperature necessary for the reaction. This external heat can be electric or gaseous fuel. The product gas dew point is typically between -60° F to -40° F. Metallurgical grade ammonia is recommended because of high purity as feed.
- Electric heating system with SCR control
- Water cooled shell and tube type heat exchanger
- Ceramic insulation
- Inconel retort complete with catalyst
- Easy removal of the retort from the top of the chamber
